BGA Sockets

A BGA socket is an electromechanical interface that securely connects an IC to a printed circuit board (PCB) while allowing for easy removal and replacement. Unlike traditional pin-based connectors, BGA sockets use an array of solder balls that enhance electrical performance and mechanical stability.

High-Performance BGA Sockets for Reliable IC Connections

In the fast-evolving world of electronics, BGA sockets (Ball Grid Array sockets) play a crucial role in ensuring secure, high-speed, and reliable connections for integrated circuits (ICs). Whether used for prototyping, testing, or full-scale production, our BGA sockets provide unmatched durability, thermal management, and signal integrity.

Applications of BGA Sockets

BGA sockets are widely used in industries that demand high-speed processing, durability, and thermal efficiency. Common applications include:

1. Computers & Servers – Used in microprocessors and memory modules for high-speed computing.
2. Mobile Devices & Wearables – Essential for compact and power-efficient electronics.
3. Networking Equipment – Found in routers, switches, and telecom devices requiring stable performance.
4. Consumer Electronics – Used in gaming consoles, smart TVs, and high-performance GPUs.
5. Aerospace & Automotive – Provides reliable connections for mission-critical electronic systems.

Benefits of BGA Sockets

The benefits of BGA IC sockets are significant, particularly for applications involving prototyping, testing, and rework. These sockets provide a versatile and efficient way to handle Ball Grid Array (BGA) integrated circuits (ICs). Here are the main benefits:

1. Easy Insertion and Removal

• No Soldering Required: BGA IC sockets allow ICs to be inserted and removed without the need for soldering and desoldering. This is particularly useful in situations where frequent changes or replacements of ICs are necessary, such as in testing or prototyping.
• Quick Rework: Since BGA ICs can be easily replaced, these sockets reduce the need for rework, making repairs faster and more cost-effective.

2. Enhanced Testability

• Testing and Debugging: BGA sockets make it easier to insert different ICs for testing and debugging. Engineers can swap out BGA ICs to test various configurations without soldering each time, significantly speeding up the development cycle.
• Prototyping: During the development of a new design, BGA sockets allow for the easy use of prototype ICs and enable rapid iteration of designs without worrying about the permanent placement of components.

3. Mechanical and Electrical Stability

• Reliable Contact: BGA sockets are designed to create stable, high-performance connections by aligning with the solder balls on the BGA IC. This ensures reliable electrical contact, minimizing the risk of connection failure.
• Robust Mechanical Support: These sockets ensure that the IC is securely held in place, which is critical for maintaining stable performance over time, especially in high-vibration environments.

4. Reduced Wear and Tear on PCB

• Avoids Damage: Direct soldering and desoldering of BGA ICs can damage the PCB, especially with repeated handling. By using BGA sockets, the PCB is protected from heat stress and physical damage caused by soldering processes.
• Preserved PCB Integrity: With BGA sockets, there is less chance of damage to the pads or traces on the PCB, extending the lifespan of the board.

5. Improved Thermal Management

• Heat Dissipation: Many BGA sockets are designed with enhanced thermal management features to help dissipate heat generated by the IC during operation. This can prevent overheating, which could otherwise damage the components or affect performance.
• Efficient Cooling: Some BGA sockets come with built-in features such as heat sinks or thermal vias, improving the overall thermal performance and stability of the IC and PCB.

6. Flexibility and Reusability

• Multiple IC Compatibility: BGA sockets are available in various sizes to accommodate different BGA IC packages. This flexibility means the same socket can be used with different ICs as long as they share the same ball grid array dimensions.
• Reusable: Unlike soldering, which is a one-time process, BGA sockets are reusable. This makes them a cost-effective solution for scenarios that involve frequent changes to ICs.

7. Improved Yield and Quality Control

• Increased Yield: BGA IC sockets help reduce the likelihood of assembly errors during the soldering process, thus increasing manufacturing yield. By avoiding soldering mistakes, it is easier to ensure that ICs are correctly mounted and working as expected.
• Easier Inspections: Since BGA sockets do not involve soldering, it is easier to inspect the ICs for quality and functionality before and after installation.

8. Convenience in High-Density Designs

• Space Efficiency: BGA packages are used in high-density designs where there are many pins in a small space. BGA sockets allow for easy connection in these designs, even where traditional pin-based connectors would be too large or impractical.
• No Need for Extra PCB Real Estate: BGA sockets are designed to fit neatly into the space reserved for BGA ICs, without requiring extra space for through-hole connectors.

9. Cost Savings

• Avoids Rework Costs: With the ability to easily replace ICs, manufacturers save money on rework and soldering labor costs. In environments where ICs need to be swapped often (like during prototyping or testing), these savings add up.
• Reduced Component Loss: BGA sockets can help prevent IC damage during the installation process, meaning fewer parts need to be replaced due to faulty soldering or handling.

10. Support for High-Speed and High-Power Applications

• Signal Integrity: BGA sockets are designed to ensure excellent signal integrity with high-frequency signals, making them ideal for use in high-speed electronics such as processors and memory devices.
• Power Management: BGA IC sockets also support high-power components, making them suitable for devices that require efficient power delivery alongside signal integrity.

Solutions We Provide

We offer a comprehensive range of solutions tailored to meet your BGA Sockets testing and manufacturing needs. Our offerings include:

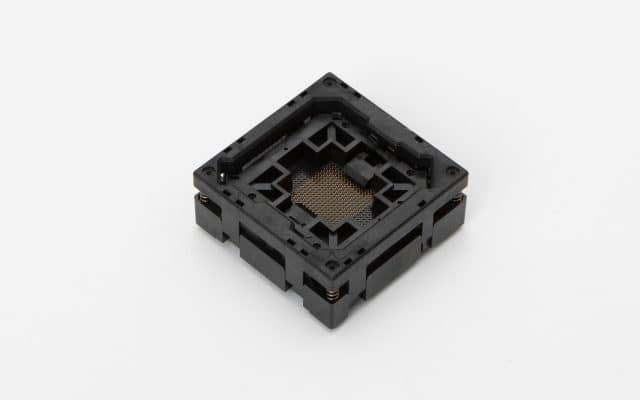

Open Top Solution

NP 481 Series

Features

• 0.4-mm-pitch bottom contact structure.
• Contacts for low-profile balls also available.

Category 1 -Micro, Logic, Analog

Category 2 – BGA

Clamshell

Product name

IC567 Series

Features

• Solutions for low-volume, high-variety production.
• Pitch: 0.30 mm or more (staggered and irregular pitches available)
• Standard cartridge heaters and temperature sensors available.
• Applicable packages: BGA/LGA/QFN/SON

Category 1 – Micro, Logic, Module

Category 2 – BGA, LGA
