Summary
By selecting the right materials, manufacturers can ensure that their IC sockets are not only durable and reliable but also capable of supporting the cutting-edge technologies of tomorrow. As new materials and innovations continue to emerge, the future of IC socket manufacturing promises even greater efficiency and performance for testing and inspection applications.
Introduction
Integrated Circuit (IC) sockets are vital components in the electronics industry, enabling quick and easy testing and inspection of ICs. These sockets facilitate the evaluation of the functionality and performance of ICs without the need to permanently attach them to a circuit board.
The materials used to manufacture these sockets are crucial for their durability, functionality, and reliability during testing. In recent years, semiconductor packages like BGA and QFP have become more compact.
Consequently, inspection IC sockets are now crafted with greater precision, incorporating advanced technology to meet the requirements of these smaller and more intricate package types.
Importance of Material Selection for IC Sockets
The materials used for IC sockets must meet several key requirements to ensure reliable performance during inspection:
- Thermal Resistance: IC sockets must be able to withstand high temperatures as they are often subjected to heat during testing. This is especially important when dealing with ICs that operate at elevated temperatures or undergo thermal cycling during the inspection process.
- Mechanical Strength: The materials must be robust enough to handle the mechanical stresses of frequent insertion and removal of ICs. This includes maintaining their structural integrity over repeated usage.
- Electrical Insulation: As IC sockets often handle high-frequency signals, the materials must be excellent electrical insulators to prevent unintended electrical conduction or short circuits.
- Dimensional Stability: The socket must retain its precise shape and alignment even after repeated exposure to heat and mechanical stresses. Any deformation could result in poor connectivity and unreliable testing results.
- Machinability: The material must be easy to machine into precise socket designs that accommodate different types of ICs, from simple through-hole packages to more complex BGA sockets (Ball Grid Array) and LGA sockets (Land Grid Array).

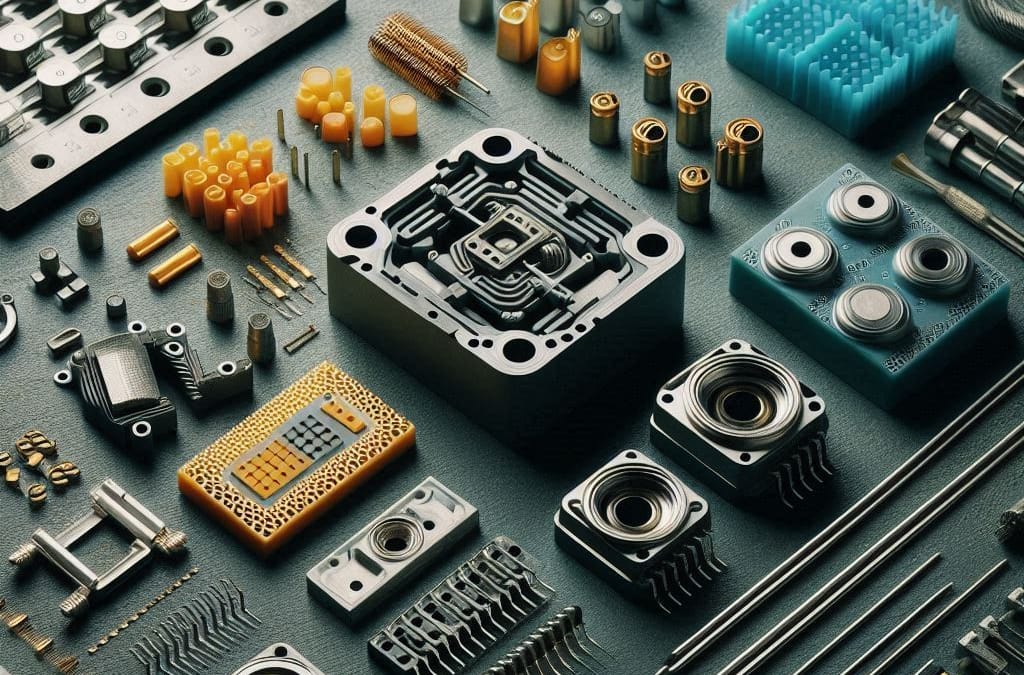

Common Materials Used in IC Socket Manufacturing
Several materials are commonly used in the production of IC sockets, each offering specific advantages suited for inspection and testing applications. Below are the most widely used materials:
1. Engineering Plastics
Engineering plastics are among the most common materials used for IC sockets, particularly for high-performance applications. These materials offer a good balance of thermal stability, mechanical strength, and electrical insulation properties.
- Polyetheretherketone (PEEK): PEEK is a high-performance thermoplastic known for its excellent thermal resistance, mechanical strength, and chemical stability. It can withstand temperatures up to 250°C, making it ideal for high-temperature inspection applications. PEEK is often used in high-reliability sectors, such as aerospace and semiconductor testing.
- Polyetherimide (PEI): PEI is another engineering plastic widely used for IC sockets. It has strong dimensional stability and is capable of withstanding moderate to high temperatures (up to 170°C). PEI is also known for its electrical insulation properties, making it a preferred choice for sockets used in testing ICs with high-frequency signals.
- Polyimide (PI): Polyimide is renowned for its exceptional thermal stability, withstanding temperatures as high as 300°C without significant degradation. It is commonly used in advanced testing scenarios, where both high thermal performance and excellent electrical properties are required.
2. Ceramic-Filled Composites
Ceramic-filled composites are often chosen for their enhanced thermal conductivity and dimensional stability. These materials combine the benefits of polymers with ceramic fillers, offering improved mechanical properties and the ability to handle heat better than standard engineering plastics.
- Ceramic-Filled Plastics: These composites are typically used in sockets that require precise thermal management. The ceramic components enhance heat dissipation, which is particularly beneficial when testing high-power ICs. The improved thermal conductivity helps maintain socket performance under high thermal loads.
3. Metals and Metal Alloys
While the body of the IC socket is generally made from plastics or composites, metal contacts are essential for ensuring good electrical conductivity. These metal components are typically used in the pins or contact areas of the socket.
- Beryllium Copper: This alloy is widely used for socket contacts due to its excellent electrical conductivity, high strength, and good corrosion resistance. Beryllium copper allows for the creation of thin, resilient contact points that maintain reliable electrical connections over time.
- Phosphor Bronze: Phosphor bronze is another metal alloy used for contact pins. It is known for its durability and ability to retain spring-like properties, ensuring proper engagement with the IC leads.
4. Stainless Steel
Stainless steel is commonly used for the mechanical frame or housing of the IC socket. It offers high strength, corrosion resistance, and excellent mechanical properties, making it ideal for the structural components of the socket. Stainless steel also helps in maintaining the dimensional integrity of the socket over prolonged use.
Trends in IC Socket Material Innovations
As the demand for more advanced and reliable testing grows, there have been several developments in IC socket materials to meet the evolving needs of the electronics industry. Some key trends include:
- High-Temperature Materials: There is an increasing demand for materials that can handle even higher temperatures, especially with the rise of high-performance chips used in areas like automotive electronics and data centers. New materials, such as high-temperature polyimide composites, are being developed to withstand temperatures above 300°C.
- Miniaturization: As ICs continue to shrink in size, socket manufacturers are developing materials that allow for more compact and precise socket designs. This includes materials that can be processed into finer structures without sacrificing performance or reliability.
- Eco-friendly Materials: As sustainability becomes a priority across industries, the use of eco-friendly and recyclable materials in IC socket production is gaining traction. Manufacturers are exploring the potential of biodegradable plastics and alternative materials to reduce environmental impact.
- Enhanced Electrical Performance: With the increasing complexity of modern ICs, particularly in high-frequency applications, there is a demand for materials that provide superior electrical performance. New composite materials that combine the best attributes of ceramics and polymers are being developed to enhance both electrical insulation and conductivity.
